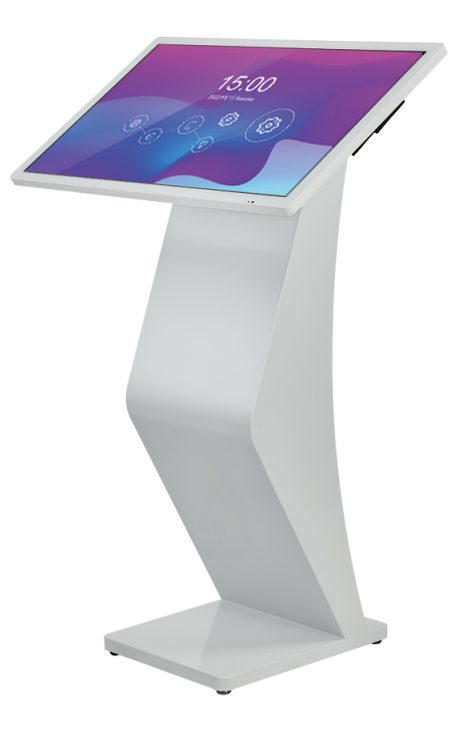

Distinctive Z-pedestal chassis that stands out on any retail floor. Available in black or white, 18.5″ to 65″, with optional IR or PCAP touch. Runs Android, Windows, or ships as a bare display module for integration into third-party systems. Landscape or portrait orientation.
| Screen sizes | 18.5″, 21.5″, 32″, 43″, 49″, 55″, 65″ |
|---|---|
| Resolution | 1920 × 1080 (FHD) standard 3840 × 2160 (4K) optional (≥43″) |
| Brightness | 250–500 cd/m² |
| Display ratio | 16:9 (landscape) / 9:16 (portrait) |
| Touch options | Non-touch (default) IR multi-touch (glove-friendly) PCAP (precision, ≤32″) |
|---|---|
| OS options | Without OS (bare module) Android 11/12/13 Windows (x86 SoC) |
| Chassis colours | Black / White |
| Series | K-type |
|---|---|
| MOQ | 1 unit (sample) / 10 units (wholesale batch) |
| Lead time | 10–18 days |
| Certifications | CE, RoHS, FCC |
| Warranty | 12-month manufacturer's warranty |
| Shipping terms | DDP/DDU worldwide |
The Z-pedestal shape is the standard form; we can engineer custom base geometries, illuminate the logo zone, or add a storage compartment into the pedestal for events use.
Start with a non-touch unit for pure advertising and add IR touch for interactive wayfinding or product configurators without changing the chassis or OS image.
Android builds ship with kiosk-mode lockdown and MDM-ready firmware. Manage content and updates across hundreds of units from a single dashboard.
The Z-pedestal's retail-floor footprint holds up outdoors too — the in-situ photo above shows the same chassis running content in an open plaza, not just in a studio. Chains standardise on the Android build for exactly this reason: kiosk-mode lockdown and MDM-ready firmware let one dashboard push content and updates across hundreds of units. Start with a non-touch unit for pure advertising, then add IR touch later for wayfinding or a product configurator without changing the chassis or OS image — IR suits gloved or public-facing use, while PCAP gives the finer precision typically chosen at 32 inches and below. And because the display also ships as a bare module without an OS, integrators running their own media player or POS software can drop it straight into an existing system instead of working around a locked-down one. Screen sizes run 18.5 inch through 65 inch, with 4K resolution available from 43 inch up, so the same chassis scales from a compact lobby unit to a large storefront display. Event organisers can also specify a custom base geometry, an illuminated logo zone, or a storage compartment built into the pedestal — the same Z-pedestal shell adapted for events use rather than permanent retail placement.
