43-Inch Wall-Mounted Signage Specifications

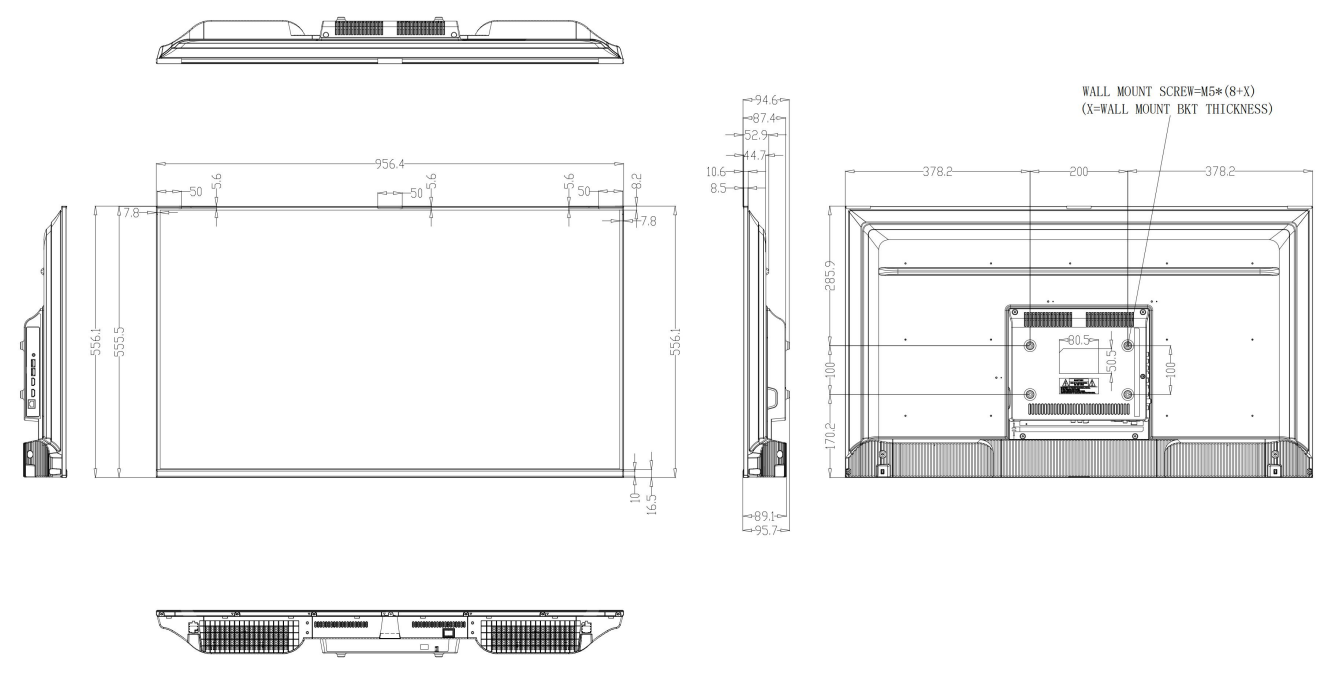

Technical Drawing: 43" Display Chassis & Mounting Dimensions

No wall to fix to? The same panel and Android CMS player ship in a free-standing enclosure — see the indoor floor standing digital signage totem, 43"–65" portrait.

Display Panel (CSOT)

LCD Size	43 inch (Active Area: 940.9 x 529.3 mm)
Resolution	1920 x 1080 (Full HD)
Brightness	350 cd/m² (Standard) / 700 cd/m² (Optional)
Contrast Ratio	4000:1
Viewing Angle	89° / 89° / 89° / 89°
Response / Lifetime	8 ms GTG / 30,000 hours

System & Enclosure

OS & Core	Android 9.0+ / Quad-core A53, ARM Mali-450
RAM / ROM	1 GB RAM / 8 GB ROM (32 GB optional)
I/O Ports	1x RJ45, 2x USB 2.0, 1x HDMI IN, 1x LINE OUT
Enclosure	Metal backboard + plastic back, Frameless (No tempered glass)
Dimensions	956.5 x 93 x 566 mm (Weight: ~5.5 kg)
Power	AC 176–264V, < 60 W operating power

Commercial terms

MOQ	1 unit (sample) / 20 units (wholesale batch)
Lead time	10–18 days
Certifications	CE, RoHS, FCC
Warranty	12-month manufacturer's warranty
Shipping terms	DDP/DDU worldwide

Factory-Direct Customization

High-Bright Window Facing

Upgrade to 3000-nit panels capable of fighting direct sunlight. Built with specialized high-Tni liquid crystal to prevent screen blackening up to 110°C surface temperature.

CMS & MDM Readiness

Our boards ship rooted with open APIs, allowing seamless installation of leading CMS platforms like NoviSign, MagicInfo, or your proprietary retail software.

Bespoke Frames

Choose your bezel color, add tamper-proof protective glass for public areas, or specify an ultra-narrow bezel (e.g., 1.8mm or 3.5mm) for video wall configurations.

Where the 43" wall-mount display gets deployed

Airports, shopping malls, and retail networks run this panel for the reason it exists: original LG and BOE panels rated for continuous 24/7 operation, not consumer-grade panels that fail under an always-on duty cycle. The standard 350 cd/m² brightness suits most indoor concourses and store interiors; the 700 cd/m² option handles brighter atriums and glazed frontages, and the 3000-nit window-facing upgrade covers installs that face direct sun through glass. Because the board ships rooted with open APIs, integrators install their own CMS — NoviSign, MagicInfo, or proprietary retail software — instead of being locked to ours. For a large-format feature wall, the same panel is also available with an ultra-narrow 1.8mm or 3.5mm bezel for video-wall tiling, or with tamper-proof protective glass where the public can reach the screen.
