A transparent LED display built into a structural glass panel. Driver-integrated 1010 lamp beads sit on near-invisible conductive traces, so the panel reads as architectural glass when off and bursts into full-motion video when on — ideal for atriums, curtain walls, and glass facades that must keep their daylight and outward view.
| Pixel Pitch | P5 |
|---|---|
| Lamp Bead | 1010, driver-IC integrated (drive-in-one) |
| Colour Configuration | 1R 1G 1B |
| Pixel Density | 4,000 px/m² |
| Transparency | 50% see-through |
| Refresh Rate | ≥ 3,840 Hz |
| White Balance Brightness | ≤ 5,000 cd/m² |
| Viewing Angle | 160° |
| Weight | 35 kg/m² |
|---|---|
| Average Power | ≤ 300 W/m² |
| Maximum Power | ≤ 800 W/m² |
| Protection Class | IP67 |
| Life Span | 100,000 hours |
| Structure | Laminated structural glass with embedded LED |
| Control | Novastar / Colorlight compatible |
LED modules are laminated inside tempered or laminated safety glass, so the panel doubles as a load-bearing or partition element rated to IP67 against water ingress.
The 1010 bead integrates the driver IC, cutting the number of components on the glass and pushing transparency to 50% with no visible cabling.
Panels are cut to your curtain-wall module grid, including curved and cylindrical glass, with hidden power and data feeds through the mullions.

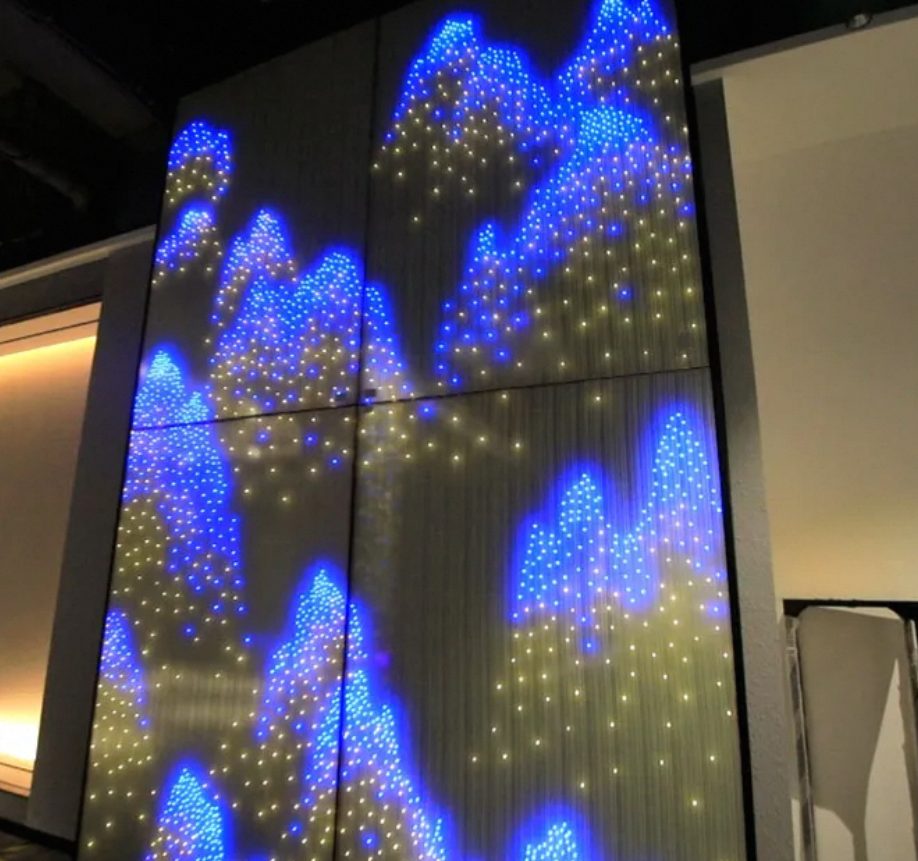

Architects and facade contractors specify LED glass for flagship retail, commercial towers, and transport hubs where the building envelope must stay transparent by day yet become a media surface by night. Because the LED is laminated inside structural glass at 50% transparency, occupants keep their outward view and daylight, while passers-by see full-motion content on the facade. The IP67 rating allows outdoor curtain-wall use in direct weather, and the 100,000-hour lamp life suits installations expected to run for a decade or more.

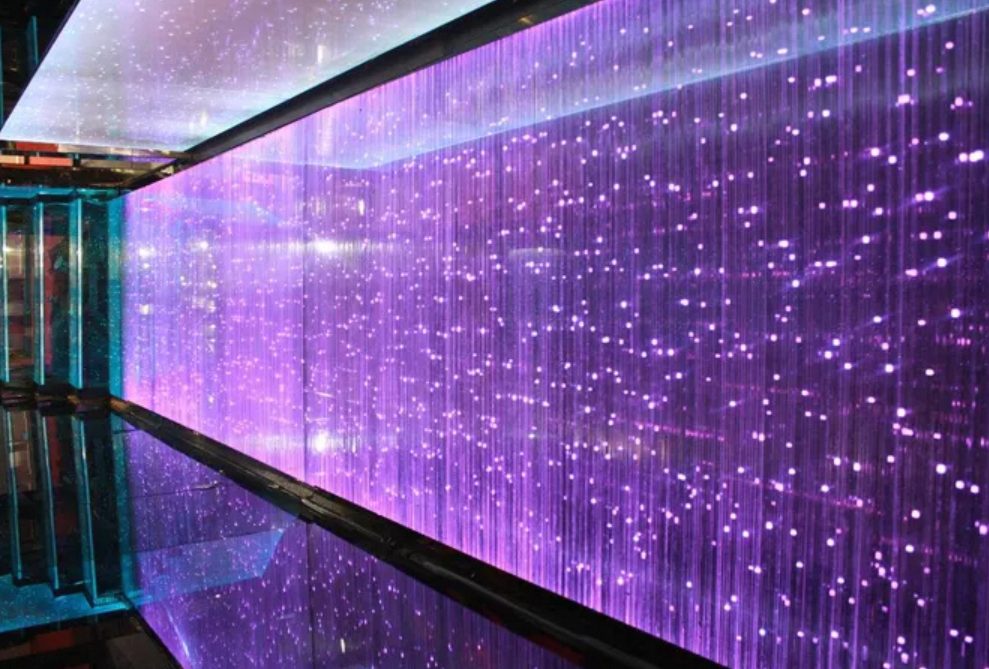

Shopping-mall developers use suspended LED glass panels in atriums and over escalator voids, where the see-through structure avoids the heavy, view-blocking mass of a conventional LED cabinet. Hospitality and corporate clients install it as glass partitions and feature walls in lobbies. The driver-integrated 1010 lamp bead and ≥3,840 Hz refresh rate deliver flicker-free capture on camera, which matters for venues that broadcast or stream events from the space.
Every panel ships CE and RoHS certified with factory test reports and a 12-month warranty. MOQ is 3 sqm; lead time is 18–28 business days from deposit, depending on glass specification. We supply turnkey systems with Novastar or Colorlight control. For a self-adhesive retrofit onto existing glass rather than a new laminated panel, see our transparent LED film.
