A lightweight LED strip-grille (mesh curtain) display for big-format building facades. Open louvre construction lets wind and daylight pass through, so at just 14 kg/m² and 55% transparency it can be hung across large glass curtain walls and structural frames without heavy steelwork.
| Pixel Pitch | P8.3 – P12.5 |
|---|---|
| Pixel Density | 9,600 px/m² |
| Transparency | 55% see-through |
| Refresh Rate | ≥ 3,840 Hz |
| White Balance Brightness | ≤ 5,000 cd/m² |
| Viewing Angle | 160° |

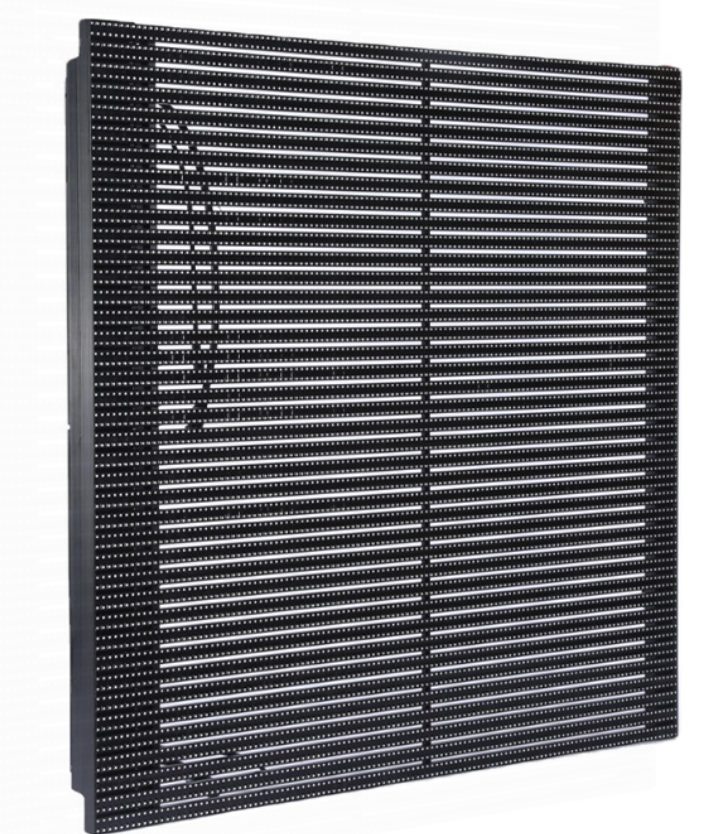

| Construction | Open louvre / strip-grille modules |
| Weight | 14 kg/m² |
|---|---|
| Average Power | ≤ 300 W/m² |
| Protection Class | IP66 |
| Life Span | 100,000 hours |
| Wind Load | Open structure — low wind resistance |
| Mounting | Top-hung, frame, or curtain-wall fixed |
| Control | Novastar / Colorlight compatible |
| MOQ | 6 sqm |
|---|---|
| Lead time | 15–25 days |
| Certifications | CE, RoHS, FCC |
| Warranty | 12-month manufacturer's warranty |
| Shipping terms | DDP/DDU worldwide |
| Country of origin | China (Hangzhou factory) |
| HS heading | 8531.20 — indicator panels incorporating LEDs (indicative; your broker sets the final classification) |
| Import documents | CE Declaration of Conformity, RoHS and FCC documentation with every shipment |
The open louvre lets air pass straight through, cutting wind load on tall facades and allowing large spans without heavy secondary steel structure.
At 14 kg/m² the grille hangs from existing curtain-wall mullions or a top rail, making it the economical choice for very large outdoor media walls.
Sealed modules withstand rain and dust for permanent exterior installation, with a 100,000-hour LED life for long unattended service.

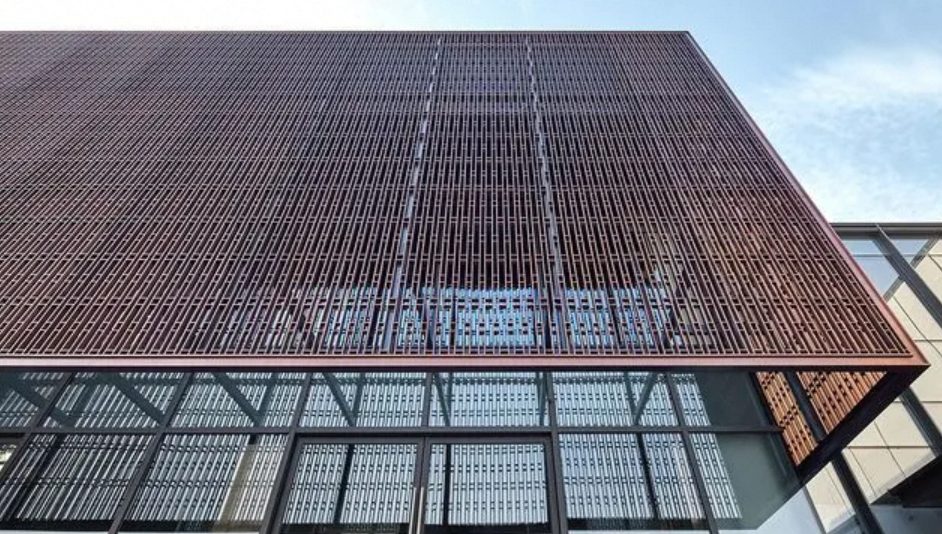

Outdoor-advertising operators and building owners choose LED grille (strip) screens when they need a very large media facade at the lowest weight and wind load. Because the louvre construction is roughly 55% open, wind passes through rather than loading the structure — this is what lets a grille screen span an entire tower facade where a solid LED wall would demand major steel reinforcement. At 14 kg/m², it mounts to existing curtain-wall mullions or a simple top-hung rail.

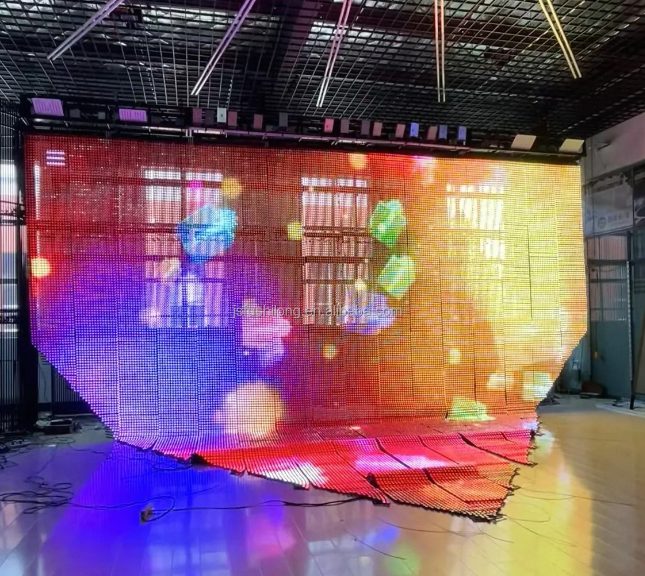

The P8.3–P12.5 pitch and 9,600 px/m² density are tuned for the long viewing distances typical of facade media: content is read from across a street or plaza, not at arm's length. With ≤5,000 cd/m² white brightness the screen stays punchy in daylight, and the IP66 rating plus 100,000-hour life suit permanent exterior installation. Curved and free-form layouts are straightforward because the strip modules flex along one axis.
Every screen ships CE and RoHS certified with a 12-month warranty and Novastar or Colorlight control. MOQ is 6 sqm; lead time is 15–25 business days from deposit. For a higher-transparency look on flat glass, compare our LED glass screen and transparent LED film.
Last updated: 31 August 2026
SkyTroni Screens sets a 6 sqm minimum order for LED grille screens, with a 15–25 business-day lead time from deposit. Screens ship CE, RoHS and FCC certified under a 12-month manufacturer's warranty, on DDP or DDU terms worldwide from the Hangzhou factory.
LED grille screens fall under HS heading 8531.20 — indicator panels incorporating light-emitting diodes. Country of origin is China. Treat the heading as indicative: your customs broker sets the final classification against the commercial invoice. SkyTroni Screens supplies CE Declaration of Conformity, RoHS and FCC documentation with every shipment.
At 14 kg/m² and roughly 55% open area, an LED grille screen hangs from existing curtain-wall mullions or a top-hung rail. Wind passes through the louvres instead of loading the facade, which is what lets a grille span a full tower elevation where a solid LED wall would demand added steel.
SkyTroni Screens builds LED grille screens for Novastar or Colorlight control — the two sending-card platforms standard in outdoor LED media. Name which one you run at quote stage and the receiving cards are fitted to match, so the screen joins your existing content workflow rather than needing a second one.
Yes — a module layout and hanging detail are prepared at quote stage, before any deposit. Send the elevation width and height in metres, the typical viewing distance, and the mounting substrate. SkyTroni Screens returns a module count, the pixel pitch that suits that distance, and the power load at ≤300 W/m².
