Tiled narrow-bezel LCD panels that assemble into a seamless large-format canvas. Built on industrial-grade Samsung, LG, and BOE panels with a 0.88mm combined seam, our splicing displays are engineered for 24/7 operation in control rooms, corporate lobbies, and retail flagships.

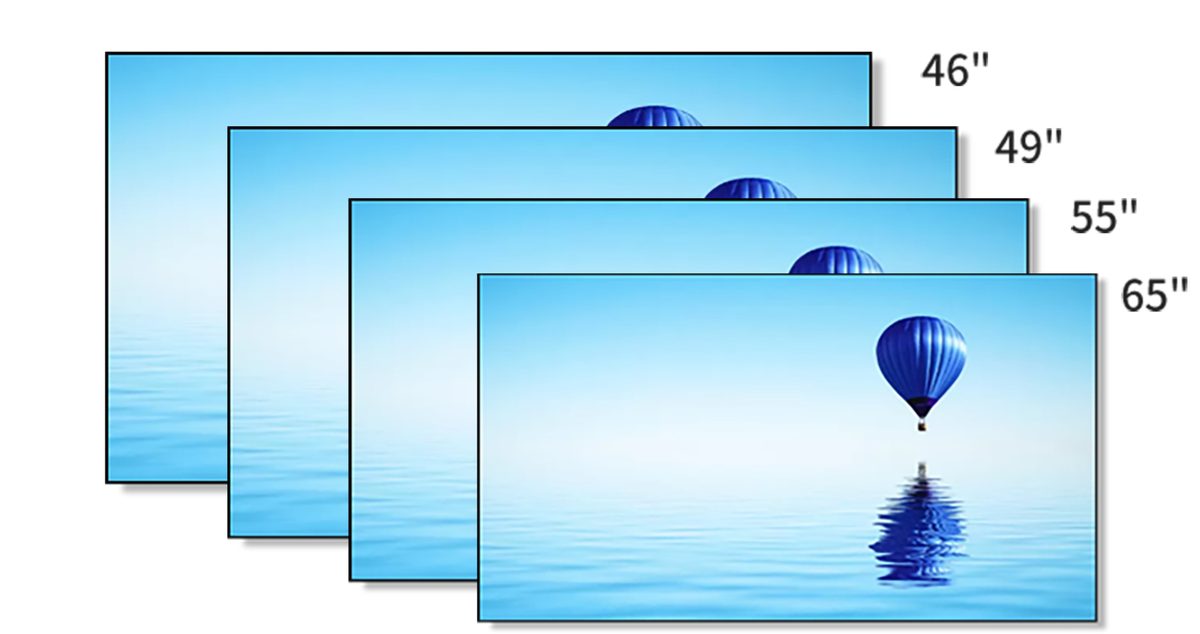

| Panel Sizes | 46" / 49" / 55" / 65" |
|---|---|
| Light Source | WLED |
| Resolution | 1920 × 1080 / 3840 × 2160 |
| Brightness | 500 cd/m² (700 cd/m² high-bright optional) |
| Contrast Ratio | 1200:1 / 4000:1 / 5000:1 (panel dependent) |
| Bezel-to-Bezel | 0.88 mm / 1.8 mm / 3.5 mm options |
| Response Time | 6 ms / 8 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Duty Cycle | 24/7 continuous operation |
|---|---|
| Mounting | Wall bracket, free-standing cabinet, or pop-out rail |
| Net Weight | 20–30 kg per panel |
| Gross Weight | 39.5–58 kg per panel (crated) |
| Signal | HDMI / DVI / VGA loop, optional video processor |
| Control | Splicing controller for any N×M array |
We splice only original Samsung, LG, or BOE industrial panels — specify the brand and seam width per project. No reclaimed or downgraded panels on OEM orders.
2×2, 3×3, or custom N×M layouts with wall brackets, slim cabinets, or front/rear pop-out maintenance rails for serviceable installs.
Optional video wall processors for windowing and multi-source layouts, plus 24/7 colour calibration to keep tiles matched over the wall's life.
Security operations centres, traffic-management rooms, and broadcast control desks are the core buyers of LCD splicing walls. At close viewing distances of 1–3 metres, a 0.88mm-seam LCD panel delivers far higher pixel density per square metre than a comparably priced fine-pitch LED wall, which keeps dense data, maps, and dashboards crisp. The 24/7 industrial panels and 5000:1 contrast option hold detail in dimmed control-room lighting without burn-in concerns.

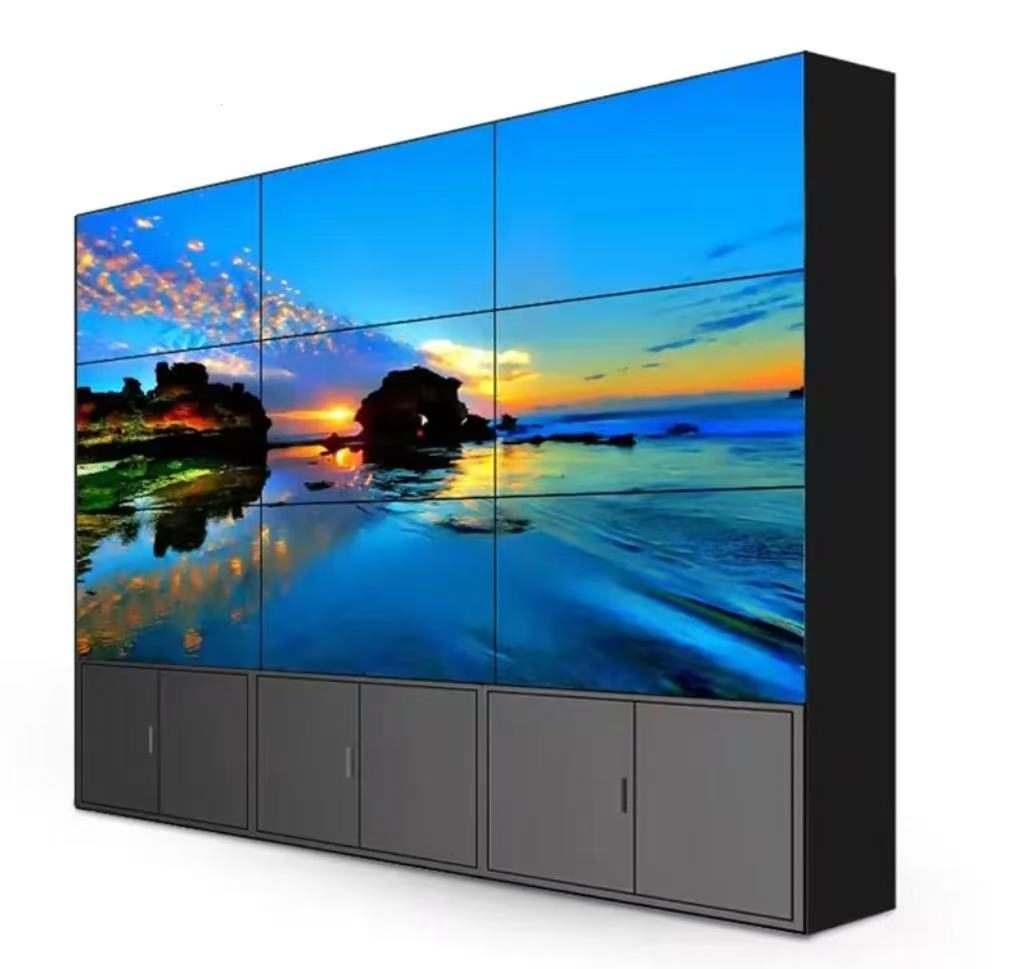

Corporate lobbies, hotel receptions, and retail flagships choose tiled LCD for feature walls where budget per square metre matters and viewers stand more than two metres back. Our 55" panels are the most common building block: a 3×3 array of 55" tiles produces roughly a 3.6 × 2.0 metre canvas. Free-standing cabinet bases suit lobbies where wall fixing is not possible, while pop-out maintenance rails let an integrator service a single tile without dismantling the array.
All panels ship CE, FCC, and RoHS certified with a 12-month warranty. MOQ is 1 unit for samples and 6 units for a wholesale batch; lead time is 12–20 business days from deposit. FOB and CIF are standard, with DDP to Poland, Germany, and the Netherlands available on request. For seamless edge-to-edge imagery with no visible seam at all, a fine-pitch direct-view LED wall is the alternative technology — ask us which fits your viewing distance and budget.
